Tap Extension

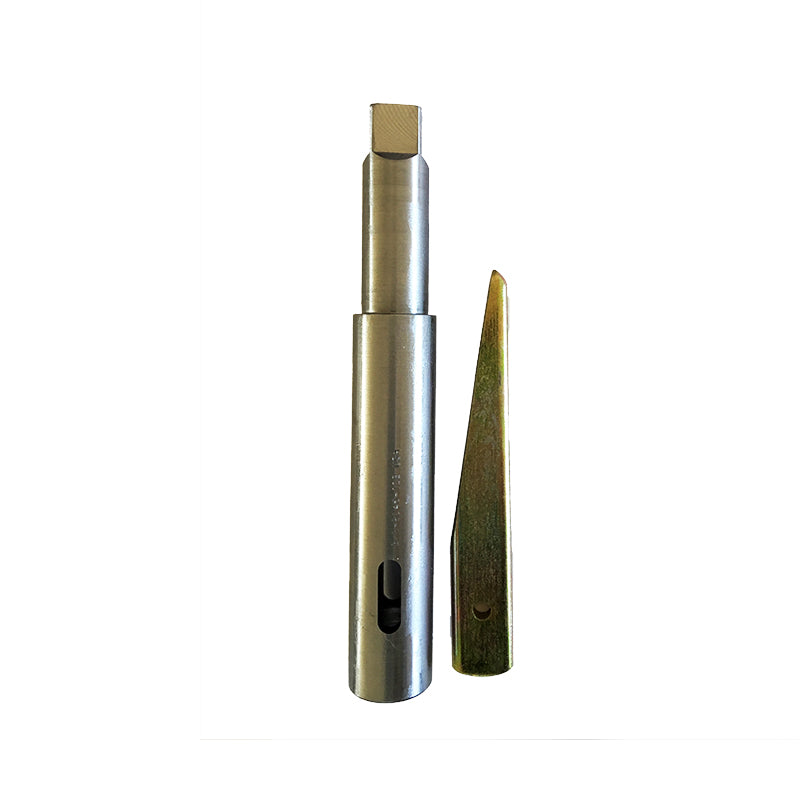

1-1/8" (m27) x 4" Tap Extension ANSI 101 series

1-1/8" (m27) x 4" Tap Extension ANSI 101 series

SKU #1184

Regular price $265.00 CAD
Regular price Sale price $265.00 CAD
Sale Sold out
Shipping calculated at checkout.
Tap Extension Diagram

Made in USA. Self-Locking feature requires Tap Square and Shank match max accepted dims.  See Detailed Size chart for all dimensions.  Metric (m) size is conversion.

0.896 – B Max Tap Shank Accepted

0.672 – C Max Tap Square Accepted

Easily extends the reach of thread taps.  No collet or set screws. Reusable.  For all machine and hand tapping applications.  Extension offers smallest OD in the industry.

Metric (m) size is conversion.  Verify the Tap mfg specs or measure Tap square and shank to assure Tap will seat with extension.

Only the drift included can dislodge the Tap from the extension

View full details

Collapsible content

FIND A DISTRIBUTOR

FIND A DISTRIBUTOR

If your favorite tool distributor is not on our roster, just ask them to contact us and we can process with a credit card and ship direct same-day by 1pm Pacific time zone or buy online.

TIPS

✔️ Important: Match the ANSI (metric conversion) or NPT Tap and Extension dimension for the square and shank.

✔️ Line up the Tap square corners with the extension inner marks.

✔️ Tap the square of the extension with a brass or lead hammer or or block to seat the tap firmly.

✔️ Tap square should be slightly visible but not covering the slot window.

✔️Only the drift provided can dislodge the Tap from the Extension. Insert the drift into the slot and move in an up and downward motion or tap drift through with a hammer or block.

View demo video on YouTube.
